S-Band satellite signals
Page: Sats.S-Band - Last Modified : Sun, 08 Feb 15
(:stylesheet:)
.txt { padding-left:10px;font-family:Courier; }
.top { background-color: rgb(0, 51, 153);padding-left:10px }
.tim { background-color: rgb(0, 51, 153);color:#eee; }
.tab { font-family: Arial;font-size: 15px;background-color:#eee;font-weight:bold; }
.hdr2 { width: 100%;font-size:15px; }
.hdr2 tr td { padding-right:10px;font-family: Courier;color:#eee;}
.hdr2 tr td:first-child { font-size: 18px;font-family:Arial;color:#fff}
.txth { text-align: right;font-size:15px;color:#888; }
(:stylesheetend:)

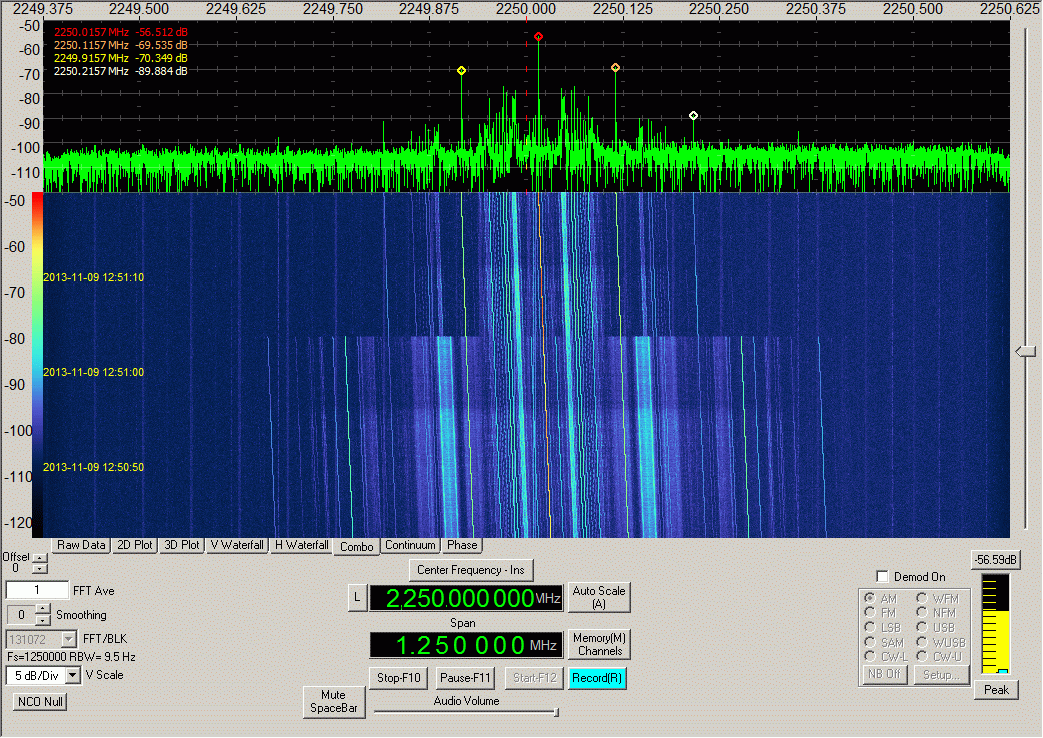

| 2250.0MHz OCEANSAT-2 | (NORAD 35931) |
| 2013-11-09
|
|---|
| MODULATION
| PM + 32000Hz subcarrier (4000Bd DBPSK)
|
|
| FRAMING
| 1024bit frame, poss. sync 0xACCA1F11
|
| DATA/ID
| custom multiplexed/framed data
|

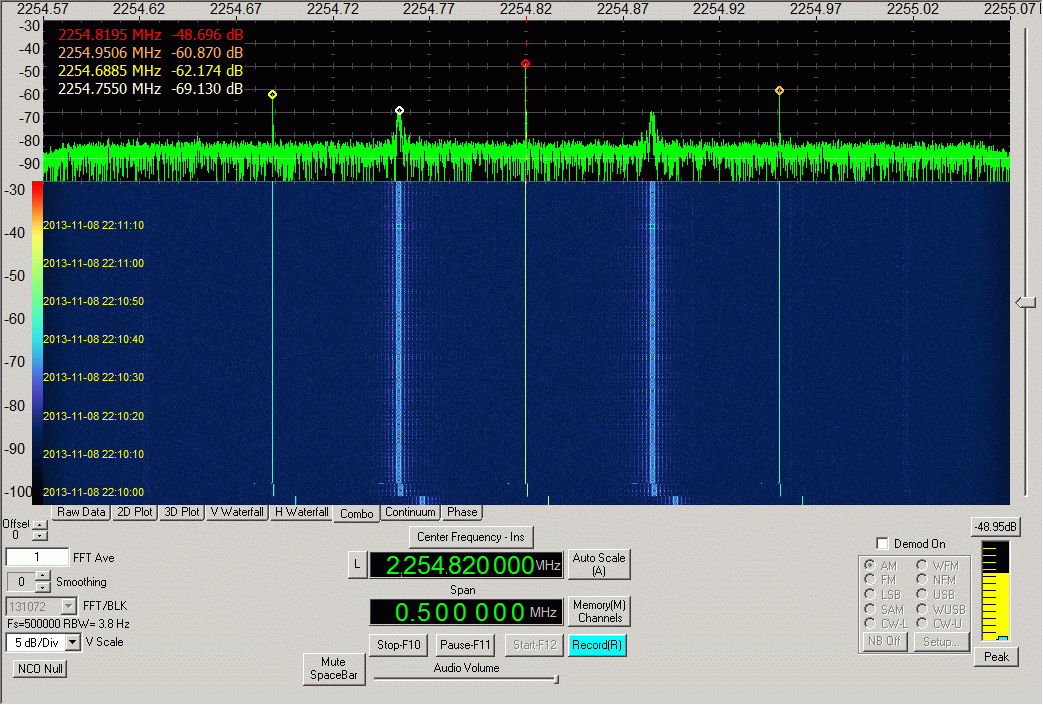

| 2254.8MHz BEIDOU-IGSO3 | (NORAD 37384) |
| 2013-11-08
|
|---|
| MODULATION
| PM + 65536Hz subcarrier (2048Bd DBPSK)
|
|
| FRAMING
| CCSDS 2048bit frame, unscrambled
|
| DATA/ID
| CCSDS V2 0x123 = KOMPSAT-3 ??? no assigned ID ???
|
| 2256.0MHz BEIDOU-M4 | (NORAD 38251) |
| 2013-11-08
|
|---|
| MODULATION
| PM + 65536Hz subcarrier (2048Bd DBPSK)
|
|
| FRAMING
| CCSDS 2048bit frame, unscrambled
|
| DATA/ID
| CCSDS V2 0x144 = (FMBPrime) ??? no assigned ID ???
|

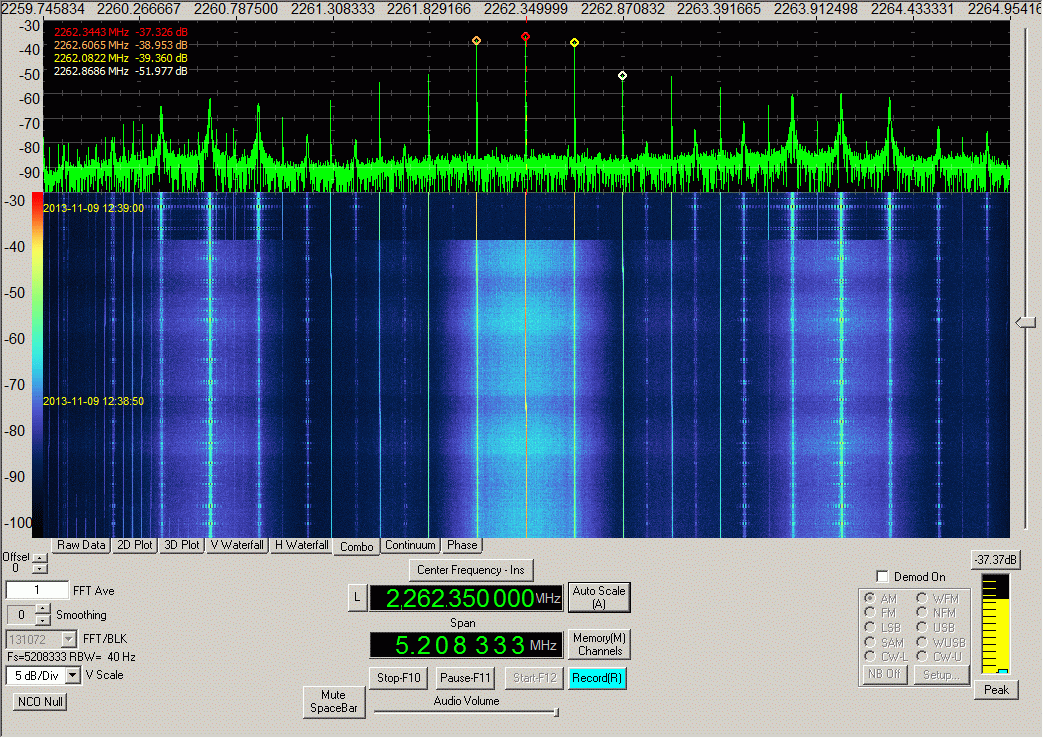

| 2262.4MHz CLOUDSAT | (NORAD 29107) |
| 2013-11-09
|
|---|
| MODULATION
| PM + data (direct, no subcarrier, 524288Bd 1/2 viterbi)
|
|
| FRAMING
| Custom telemetry, 4096bit frame, poss. sync: 0x06DE5194
|
| DATA/ID
|
|

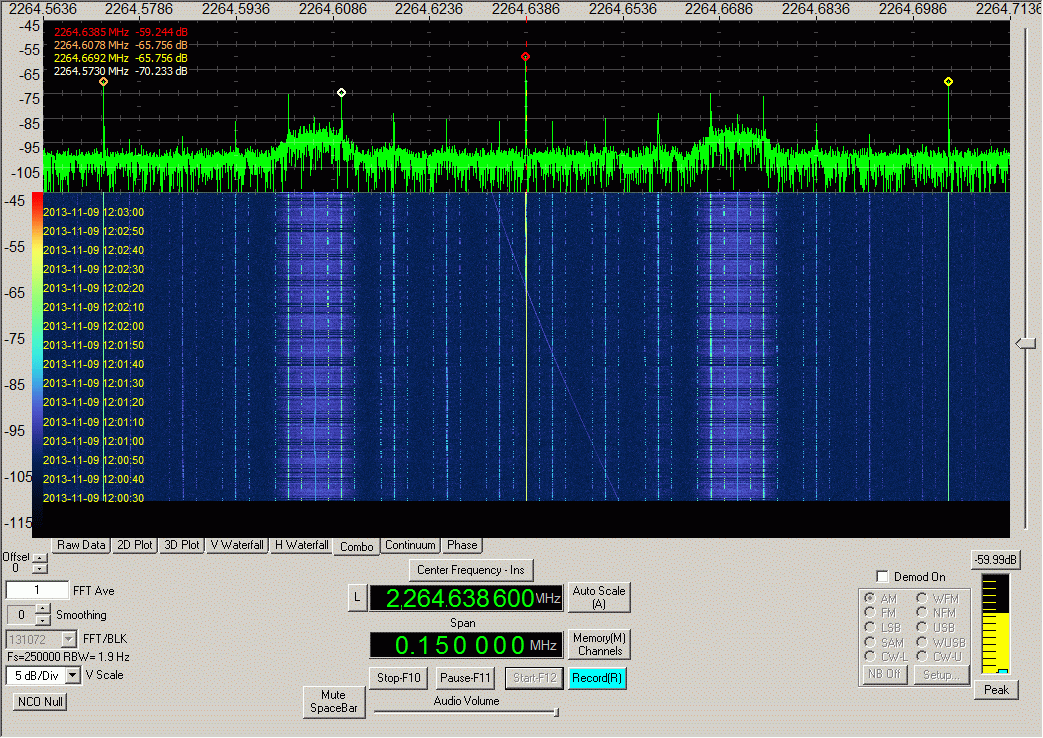

| 2264.6MHz Eutelsat 12 West A | (NORAD 27508) (GEO@12.5°W) |
| 2013-11-09
|
|---|
| MODULATION
| PM + 32768Hz subcarrier (8192Bd BPSK 1/2 viterbi, unscrambled)
|
|
| FRAMING
| CCSDS 2072bit frame, 1 RS check block
|
| DATA/ID
| CCSDS V1 0x0A4 = ATLANTICBIRD1
|

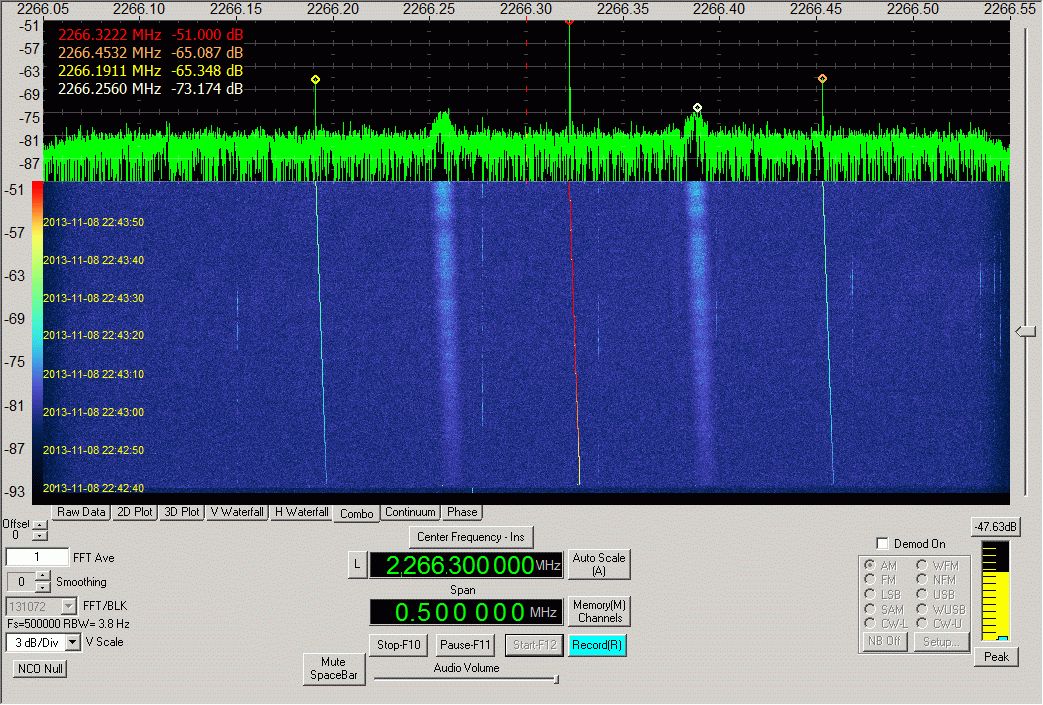

| 2266.3MHz Yaogan-8 | (NORAD 36121) |
| 2013-11-08
|
|---|
| MODULATION
| PM + 65536Hz subcarrier (8192Bd DBPSK)
|
|
| FRAMING
| 2048bit frame, sync 0xFAF320
|
| DATA/ID
| basic tlm + encrypted block
|

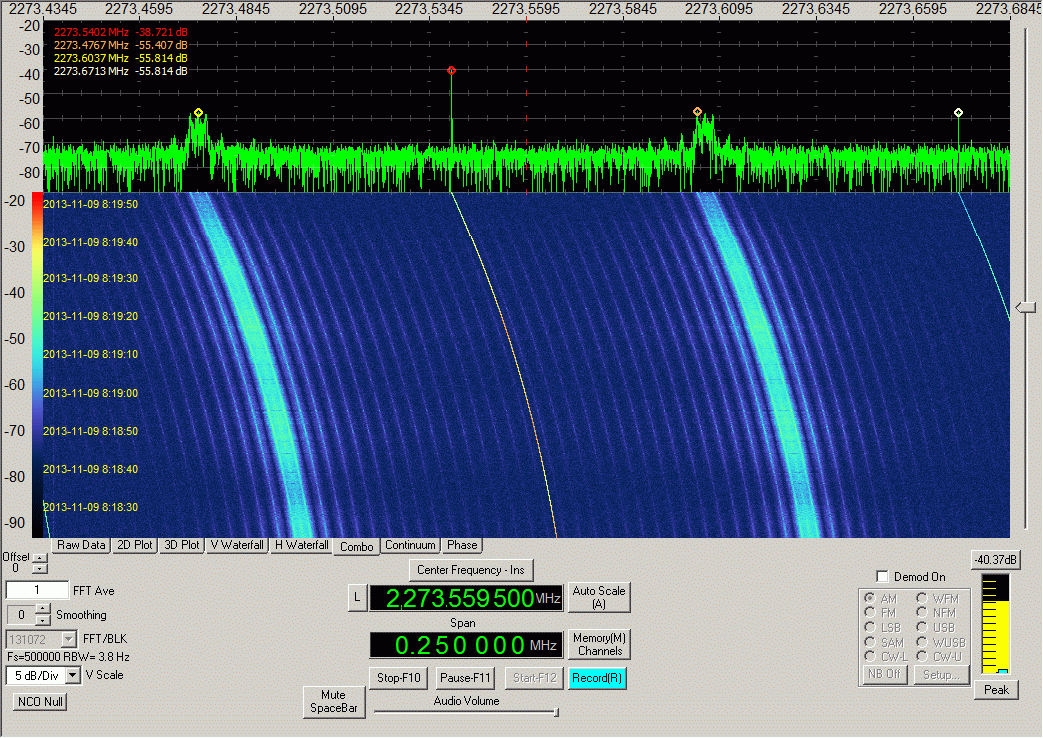

| 2273.5MHz Haiyang-1B | (NORAD 31113) |
| 2013-11-09
|
|---|
| MODULATION
| PM + 65536Hz subcarrier (4096Bd DBPSK)
|
|
| FRAMING
| 1024bit frame, sync 0xEB90
|
| DATA/ID
|
|

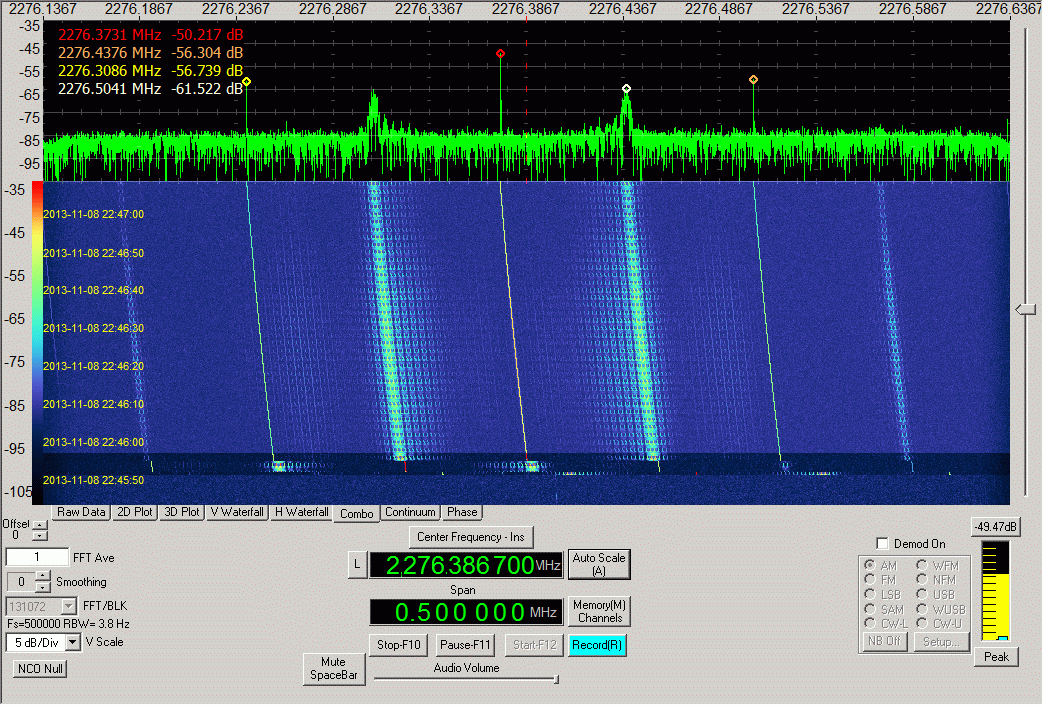

| 2276.4MHz TX-1 | (NORAD 37874) |
| 2013-11-09
|
|---|
| MODULATION
| PM + 65536Hz subcarrier (4096Bd DBPSK)
|
|
| FRAMING
| 512bit frame, sync 0xEB90
|
| DATA/ID
|
|
| 2296.6MHz Yaogan-6 | (NORAD 34839) |
| 2013-11-08
|
|---|
| MODULATION
| PM + 65536Hz subcarrier (4096Bd DBPSK)
|
|
| FRAMING
| 2048bit frame, sync 0xFAF320
|
| DATA/ID
| 13 bytes of basic tlm + 208 bytes of encrypted data
|

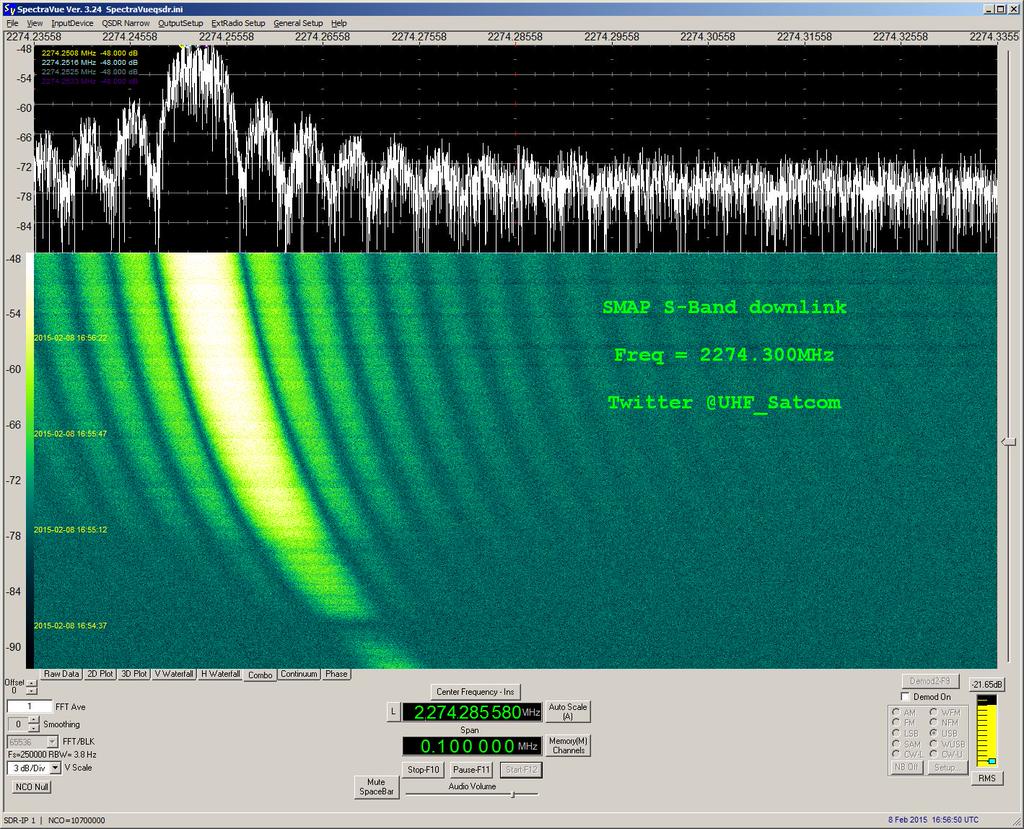

| 2274.3MHz SMAP | (NORAD 40376) |
| 2015-02-08
|
|---|
| MODULATION
| 4588Bd DBPSK
|
|
| FRAMING
| 10232bit CCSDS frame with 5 blocks of RS
|
| DATA/ID
| HDR v2 S/C ID 0xCD (registered as "SMAP" in SANA)
Basic telemetry on VC0/APID10, VC63 used for padding.

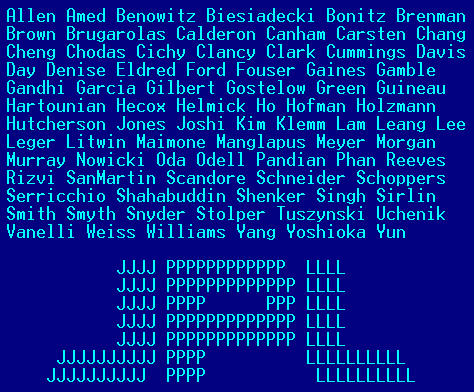

Padding contains this nice message!
|
